OIL/WATER/SOLIDS SEPARATORS Taylor CPS 2000 Three Phase Separation System
(CALL FOR QUOTE)
Phone: (662) 418-3738
Crawford Environmental Services provides sales and service for Taylor oil/water separators or can custom design a system for your wastewater requirements.
Designed by Taylor Power Systems, these low volume (LV), medium volume (MV), and the high volume (HV) units are designed specifically for sanitary sewer discharge, storm water run-off, and by-product recovery on other industrial wastewater applications.

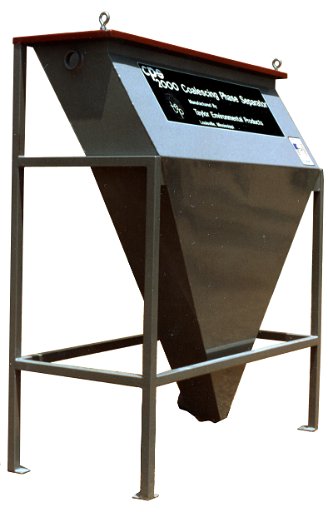

Model LV
Specifications
Tank size - 4-ft. 6-in. L x 4-ft.W x 7 -ft. 6-in.H
Overall height - 8-ft.
Material - A-36 3/16 Mild Steel
Flow rate - 1 to 25 GPM
Weight - 1,500 lbs.
Coalescing pack - Steel
Drain off oil capacity - 51 gallons
Total oil capacity without interfering with 150 gallons
Total fluid capacity (main) - 680 gallons
Model MV
Specifications
Tank size - 5-ft. 3-1/2-in. L x 6-ft. 2-3/8-in. W x 9-ft. 2-in.H
Overall height - 9-ft. 10-in.
Material - A-36 3/16 Mild Steel
Flow rate - 1 to 100 GPM
Weight - 2,500 lbs.
Coalescing pack - Steel
Drain off oil capacity - 90 gallons
Total oil capacity without interfering with operation - 280 gallons
Total fluid capacity (main) - 1,190 gallons
Model MV
Specifications
Tank size - 7-ft. 5/8-in. L x 7-ft. 2-in. W x 9-ft. 6-in.H
Total oil capacity without interfering with operation - 588 gallons
Total fluid capacity (main) - 2,350 gallons
Standard Equipment for LV, MV, HV Models
Coalescing pack - Steel
Influent water discharge - PVC
Inlet tank - Steel
Breather assembly - Steel
Oil drain off - 2" ball valve with fitting
Sludge discharge - 3" ball valve with fitting
External sludge container - A-36 3/16 Mild Steel

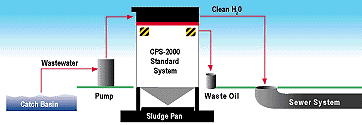

Schematic drawing for Sanitary Sewer System

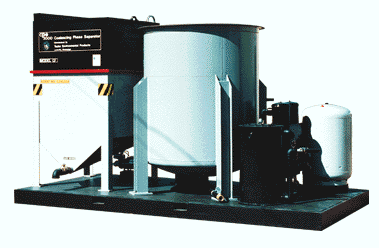

Model CLLV CPS 2000 Closed Loop Recycle System
The Taylor CPS 2000 Model CLLV Closed Loop Recycle System is designed for continuous clean-up and recycling of your wastewater. This system can eliminate the need for permits and monitoring in most instances.
Model CLLV is equipped with a water recycle tank and dual filter canisters. Options include ozone generation for odor control and activated carbon/polymer final water polishing.
Standard Equipment
Influent water discharge - PVC
Inlet tank - Steel
Inlet and fittings - 4-inch black steel
Breather assembly - Steel
Oil drain off - 2" ball valve with fitting
Sludge discharge - 3" ball valve with fitting
External sludge container - 3/16" steel
External tank cover - Galvanized sheet
Electric or Air Pumps - with controls, floats, and panel
Air or Centrifugal Pumps
Customized Weather-Proof Control Panel
Interfaced Controls & Floats for Automatic Operation
Installation Hoses
Overflow Safety Switch
Specifications
Tank size (main separator) - 4-ft. L x 4-ft. W x 7-ft. 6-in.H
Overall height - 8-ft. 9-in.
Material - 3/16 Steel plate
Flow rate - 1 to 22 GPM
Weight - 6,600 lbs.
Coalescing pack - Steel
Drain off oil capacity - 51 gallons
Total oil capacity
without interfering with operation - 150 gallons
Total fluid capacity (main) - 680 gallons
Water recycle tank capacity - 600 gallons
Dual Bag Filter Canister System with 25 micron bags
Skid Mount - 8-in. channel and 7-gauge plate
Skid size: 7-ft. W x 14-ft. L
Available Options: Ozone Generation, Activated Carbon/Polymer Media, Chemical Treatment

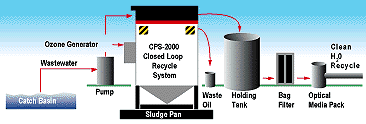

Schematic drawing for CPS 2000 Closed Loop System
Model SDLV CPS Surface Discharge System
The Taylor CPS 2000 Model SDLV Surface Discharge System is designed to meet Class A Discharge Limits. Model SDLV is equipped with a water transfer tank, dual filter housings and activated carbon / polymer media pack. Options include ozone generation carbon treatment, pH adjustment, chemical adjustment.
Taylor Power also offers other models that can customized for your application.
Standard Equipment for Model SDLV
Inlet Tank
Main Separator Tank
Steel Coalescing Pack
Influent Water Discharge
Inlet and Fittings
Breather Assembly
Oil Drain-off (2-in. Ball Valve)
Sludge Discharge (3-in. Ball Valve)
External Sludge Container
Dual Bag Filter Canister System with 25 Micron Bags
250 Gallon Water Recycle Tank with Fittings & Cover
Filter Media Tank for 25 GPM System
(2) Air or Centrifical Pumps
Customized Weather-Proof Control Panel
Interfaced Controls and Floats
Installation Hoses
Overflow Safety Switch
Cover
Complete Unit Skid Mounted with Containment
Available Options: Ozone Generation, Activated Carbon/Polymer Media, Chemical Treatment

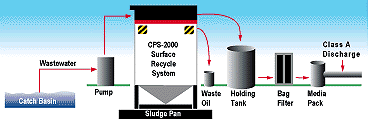

Schematic drawing for Surface Discharge System

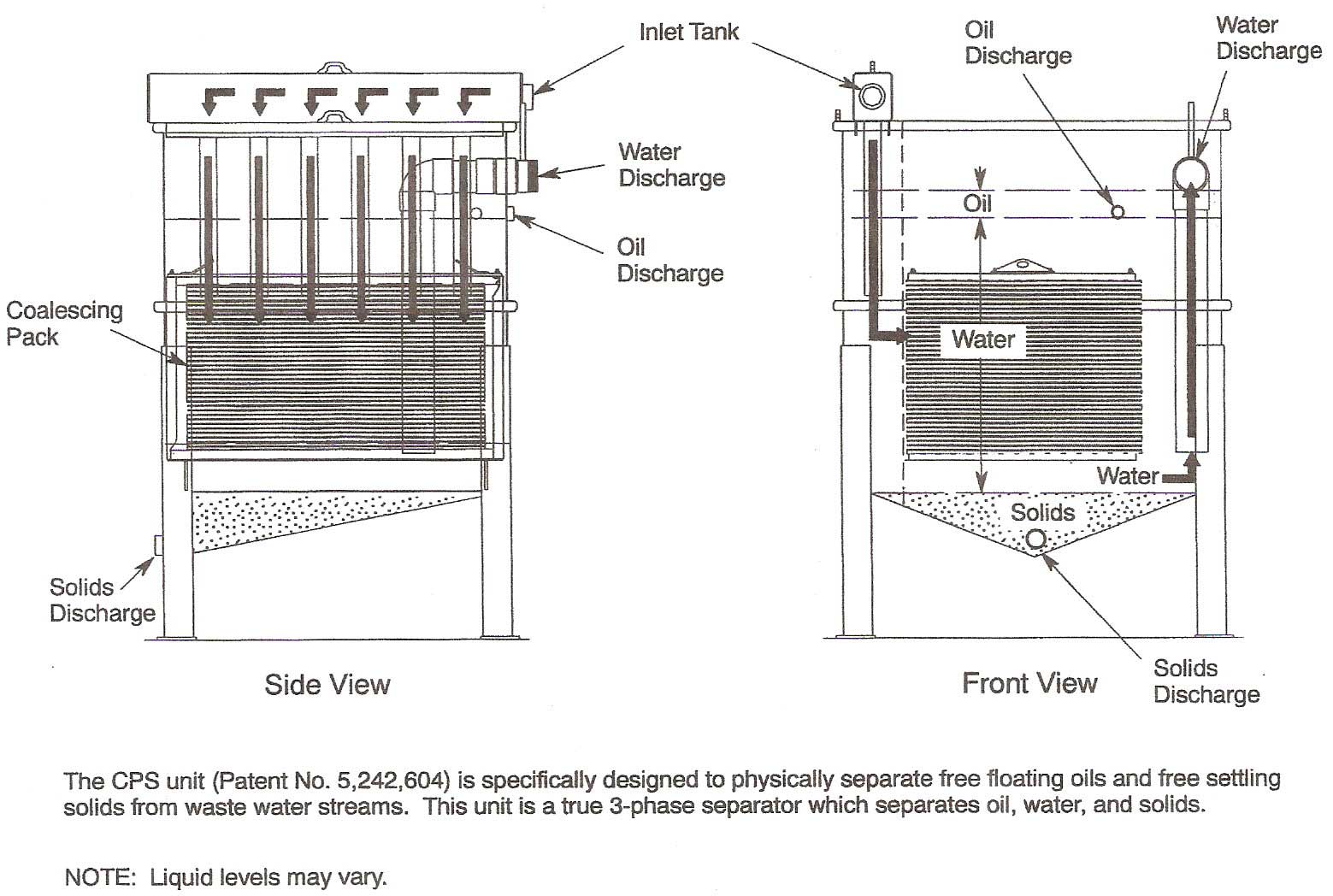

Taylor CPS 2000 Model XLV
The Model XLV is specifically designed to remove free floating oils and free setting solids. This unit is a true three-phase separator which utilizes a high surface area, steep slope, lateral flow, corrugated plate pack for both coalescing and separation. The treated water flows from the separator to the discharge point.
The CPS 2000 Model XLV is a high quality unit that fills a need for lower volume applications of one to twelve gallons per minute, is economically priced, operator friendly and provides efficient performance.
Specifications for CPS 2000 Model XLV
Suggested flow rate (Approx.) - 3-6 GPM
Design flow rate - 1-12 GPM
Overall dimensions - 72'' H x 61'' L x 27'' W
Approximate weight - 520 lbs. (can be shipped by common carrier)
